深度冷却式科研红外相机

更新：2019-06-14 17:45:15 点击：

品牌： QSI
型号： RS

产品介绍

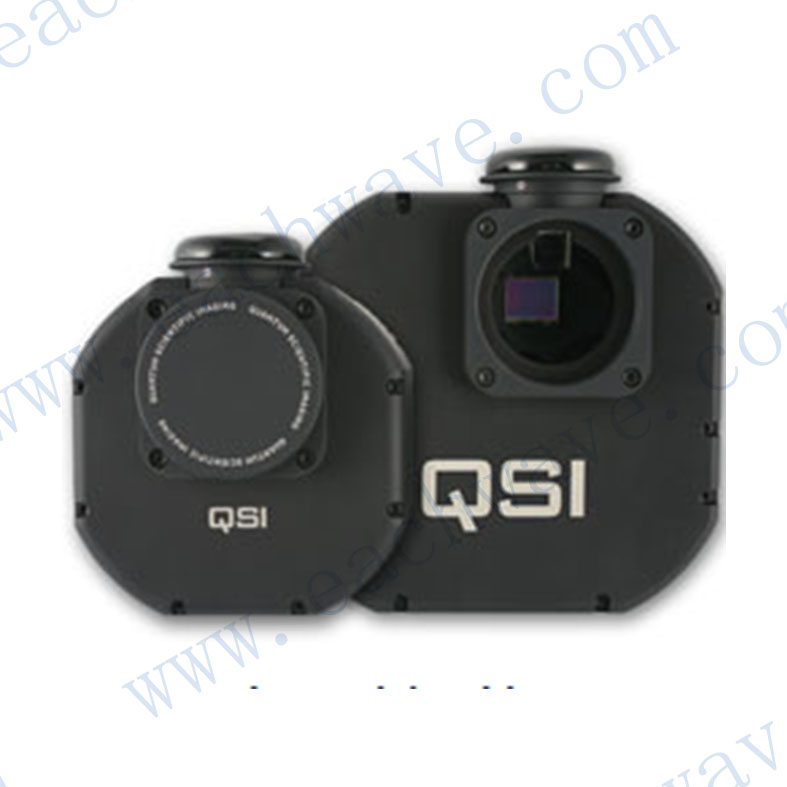

RS系列深度冷却式科研红外相机

QSI RS系列是针对生命科学而设计的高性能相机，波长范围覆盖UV-NIR，高达8MHz双重读取频率，高速USB2.0，16位的输出是的QSISR系列具备了高成像质量和高速等优异性能。

RS系列相机CCD非玻璃覆盖，而是用使用片，在240-1100nm就有非常好的透过率。TTL外调制电信号输入或者输出只有5微妙的延迟。

高动态范围，线性度高且噪声低，2级TEC制冷可控制45度的高温，选择液态交换式探测头可达50度。

QSI600系列有9种不同的型号，使用了Truesense 和Sony黑白和single-shot 彩色科研级9.2mp CCD，多种型号和配置选择满足医疗、天文、工业等特殊应用。

产品特点：

优秀的成像质量

石英窗口片渡抗反膜

波长范围覆盖240-1100nm

可选ROI和像素组合

输入和输出调制

PIV曝光模式应用于流体拍摄

高达8MHZ双重读取频率

高速USB2.0,16位输出

可达50度的空气和液体冷却

5-8个滤光片位

微观显微学软件

COM接口

适用于Windows、Linux操作系统

产品型号对照表：

QSI RS Series - Model Summary

Monochrome Models	Standard CCD	~Pixels	CCD Type	Electronic Shutter	Mechanical Shutter	Shutter & Filter Wheel
RS 9.2	Sony ICX814	9.2M	Interline	RS 9.2	RS 9.2s	RS 9.2ws RS 9.2ws-8
RS 8.3	KAF-8300	8.3M	Full frame	–	RS 8.3s	RS 8.3ws RS 8.3ws-8
RS 6.1	Sony ICX694	6.1M	Interline	RS 6.1	RS 6.1s	RS 6.1ws RS 6.1ws-8
RS 4.2	KAI-04022	4.2M	Interline	RS 4.2	RS 4.2s	RS 4.2ws RS 4.2ws-8
RS 3.2	KAF-3200ME	3.2M	Full frame	–	RS 3.2s	RS 3.2ws RS 3.2ws-8
RS 2.8	Sony ICX674	2.8M	Interline	RS 2.8	RS 2.8s	RS 2.8ws RS 2.8ws-8
RS 2.0	KAI-2020M	2.0M	Interline	RS 2.0	RS 2.0s	RS 2.0ws RS 2.0ws-8
RS 1.6	KAF-1603ME	1.6M	Full frame	–	RS 1.6s	RS 1.6ws RS 1.6ws-8
RS .40	KAF-402ME	400K	Full frame	–	RS .40s	RS .40ws RS .40ws-8

Single Shot Color Models	Standard CCD	~Pixels	CCD Type	Electronic Shutter	Mechanical Shutter
RS 8.3c	KAF-8300C	8.3M	Full frame RGB bayer filter	–	RS 8.3cs
RS 4.2c	KAI-04022C	4.2M	Interline RGB bayer filter	RS 4.2c	RS 4.2cs
RS 2.0c	KAI-2020CM	2.0M	Interline RGB bayer filter	RS 2.0c	RS 2.0cs

Specifications are subject to change. Refer to product pages for complete specifications

QSI RS Series - Model Comparison

Camera Model	Standard CCD	CCD Type	~Pixels	Pixel Array	CCD Size	Pixel Size	Saturation Signal (electrons)	Gain (e-/ADU)	Read Noise (RMS)	Color Filter Wheel	Body Size
RS 9.2i	ICX814	Interline	9.2M	3388x2712	12.48 x 9.98mm	3.69µm	18,000	0.2 / 0.5	5eˉ	–	Slim
RS 9.2s	ICX814	Interline	9.2M	3388x2712	12.48 x 9.98mm	3.69µm	18,000	0.2 / 0.5	5eˉ	–	Medium
RS 9.2ws	ICX814	Interline	9.2M	3388x2712	12.48 x 9.98mm	3.69µm	18,000	0.2 / 0.5	5eˉ	5-pos	Full
RS 9.2ws-8	ICX814	Interline	9.2M	3388x2712	12.48 x 9.98mm	3.69µm	18,000	0.2 / 0.5	5eˉ	8-pos	Full
RS 8.3s	KAF-8300	Full frame	8.3M	3326 x 2604	17.96 x 13.52mm	5.4µm	25,500	0.5 / 1.1	8eˉ	–	Medium
RS 8.3ws	KAF-8300	Full frame	8.3M	3326 x 2604	17.96 x 13.52mm	5.4µm	25,500	0.5 / 1.1	8eˉ	5-pos	Full
RS 8.3ws-8	KAF-8300	Full frame	8.3M	3326 x 2604	17.96 x 13.52mm	5.4µm	25,500	0.5 / 1.1	8eˉ	8-pos	Full-8
RS 6.1i	ICX694	Interline	6.1M	2758x2208	12.48 x 9.98mm	4.54µm	20,000	0.2 / 0.5	5eˉ	–	Slim
RS 6.1s	ICX694	Interline	6.1M	2758x2208	12.48 x 9.98mm	4.54µm	20,000	0.2 / 0.5	5eˉ	–	Medium
RS 6.1ws	ICX694	Interline	6.1M	2758x2208	12.48 x 9.98mm	4.54µm	20,000	0.2 / 0.5	5eˉ	5-pos	Full
RS 6.1ws-8	ICX694	Interline	6.1M	2758x2208	12.48 x 9.98mm	4.54µm	20,000	0.2 / 0.5	5eˉ	8-pos	Full
RS 4.2i	KAI-04022	Interline	4.2M	2048x2048	15.15 x 15.15mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Slim
RS 4.2s	KAI-04022	Interline	4.2M	2048x2048	15.15 x 15.15mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Medium
RS 4.2ws	KAI-04022	Interline	4.2M	2048x2048	15.15 x 15.15mm	7.4µm	45,000	0.7 / 1.5	8eˉ	5-pos	Full
RS 4.2ws-8	KAI-04022	Interline	4.2M	2048x2048	15.15 x 15.15mm	7.4µm	45,000	0.7 / 1.5	8eˉ	8-pos	Full
RS 3.2s	KAF-3200ME	Full frame	3.2M	2184 x 1472	14.85 x 10.26mm	6.8µm	55,000	0.9 / 2.0	7eˉ	–	Medium
RS 3.2ws	KAF-3200ME	Full frame	3.2M	2184 x 1472	14.85 x 10.26mm	6.8µm	55,000	0.9 / 2.0	7eˉ	5-pos	Full
RS 3.2ws-8	KAF-3200ME	Full frame	3.2M	2184 x 1472	14.85 x 10.26mm	6.8µm	55,000	0.9 / 2.0	7eˉ	8-pos	Full-8
RS 2.8i	ICX674	Interline	2.8M	1940x1460	8.81 x 6.63mm	4.54µm	20,000	0.2 / 0.5	5eˉ	–	Slim
RS 2.8s	ICX674	Interline	2.8M	1940x1460	8.81 x 6.63mm	4.54µm	20,000	0.2 / 0.5	5eˉ	–	Medium
RS 2.8ws	ICX674	Interline	2.8M	1940x1460	8.81 x 6.63mm	4.54µm	20,000	0.2 / 0.5	5eˉ	5-pos	Full
RS 2.8ws-8	ICX674	Interline	2.8M	1940x1460	8.81 x 6.63mm	4.54µm	20,000	0.2 / 0.5	5eˉ	8-pos	Full
RS 2.0i	KAI-2020M	Interline	2.0M	1600 x1200	11.84 x 8.88mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Slim
RS 2.0s	KAI-2020M	Interline	2.0M	1600 x1200	11.84 x 8.88mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Medium
RS 2.0ws	KAI-2020M	Interline	2.0M	1600 x1200	11.84 x 8.88mm	7.4µm	45,000	0.7 / 1.5	8eˉ	5-pos	Full
RS 2.0ws-8	KAI-2020M	Interline	2.0M	1600 x1200	11.84 x 8.88mm	7.4µm	45,000	0.7 / 1.5	8eˉ	8-pos	Full-8
RS 1.6s	KAF-1603ME	Full frame	1.6M	1536 x 1024	13.8 x 9.2mm	9µm	100,000	1.8 / 4.0	15eˉ	–	Medium
RS 1.6ws	KAF-1603ME	Full frame	1.6M	1536 x 1024	13.8 x 9.2mm	9µm	100,000	1.8 / 4.0	15eˉ	5-pos	Full
RS 1.6ws-8	KAF-1603ME	Full frame	1.6M	1536 x 1024	13.8 x 9.2mm	9µm	100,000	1.8 / 4.0	15eˉ	8-pos	Full-8
RS .40s	KAF-0402ME	Full frame	400K	768 x 512	6.91 x 4.6mm	9µm	100,000	1.8 / 4.0	15eˉ	–	Medium
RS .40ws	KAF-0402ME	Full frame	400K	768 x 512	6.91 x 4.6mm	9µm	100,000	1.8 / 4.0	15eˉ	5-pos	Full
RS .40ws-8	KAF-0402ME	Full frame	400K	768 x 512	6.91 x 4.6mm	9µm	100,000	1.8 / 4.0	15eˉ	8-pos	Full-8
RS 8.3cs	KAF-8300	Full frame color RGB	8.3M	3326 x 2604	17.96 x 13.52mm	5.4µm	25,500	0.5 / 1.1	8eˉ	–	Medium
RS 4.2c	KAI-04022	Interline color RGB	4.2M	2048x2048	15.15 x 15.15mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Slim
RS 4.2cs	KAI-04022	Interline color RGB	4.2M	2048x2048	15.15 x 15.15mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Medium
RS 2.0c	KAI-2020CM	Interline color RGB	2.0M	1600 x1200	11.84 x 8.88mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Slim
RS 2.0cs	KAI-2020CM	Interline color RGB	2.0M	1600 x1200	11.84 x 8.88mm	7.4µm	45,000	0.7 / 1.5	8eˉ	–	Medium

● = Included Feature

○ = Optional

– = Not available

Specifications are subject to change. Refer to product pages for complete specifications

QSI RS Series - Body Comparison
(Click camera model to jump to that product page)

Slim Body

Medium Size Body

Full Size Body

Shutter

Electronic

Mechanical

Exposure range

100 µsec (0.0001) to 240 min

0.03 seconds to 240 min

Internal Color Filter Wheel

Yes, 5-position
Upgradeable to 8-position

Integrated Guider Port

Dimensions

W4.45” x H4.45” x D1.68”
(add 0.23" for std T-Mount)

W4.45” x H4.45” x D2.00”
(add 0.23" for std T-Mount)

W4.45” x H4.45” x D2.5”
(add 0.23" for std T-Mount)

Weight

26 oz. / 740g

34 oz. / 950g

40 oz. / 1120g

Back Focus

0.61” with T-Mount adapter

0.90” with T-Mount adapter

1.40” with T Mount adapter

0.68” with C-Mount adapter

1.18” with C-Mount adapter

0.39” w/o mounting adapter

0.68” w/o mounting adapter

1.18” w/o mounting adapter

Camera Models

RS 9.2i
RS 6.1i
RS 4.2i	RS 4.2c
RS 2.8i
RS 2.0i	RS 2.0c

RS 9.2s
RS 6.1s
RS 8.3s	RS 8.3cs
RS 4.2s	RS 4.2cs
RS 3.2s
RS 2.8i
RS 2.0s	RS 2.0cs
RS .40s

RS 9.2ws
RS 6.1ws
RS 8.3ws
RS 4.2ws
RS 3.2ws
RS 2.8ws
RS 2.0ws
RS .40ws

Specifications are subject to change. Refer to product pages for complete specifications

Full-8 Body

Shutter

Mechanical

Exposure range

0.03 seconds to 240 min

Internal Color Filter Wheel

Yes, 8-position

Integrated Guider Port

Dimensions

W5.86” x H5.56” x D2.5”
including adapter plate
(add 0.23" for std T-Mount)

Weight

51 oz. / 1450g

Back Focus

1.40” with T Mount adapter

1.18” with C-Mount adapter

1.18” w/o mounting adapter

Camera Models

RS 9.2ws-8
RS 6.1ws-8
RS 8.3ws-8
RS 4.2ws-8
RS 3.2ws-8
RS 2.8ws-8
RS 2.0ws-8
RS .40ws-8
