资料下载：Download Components for Optics for Sensors and Detectors Datasheet (PDF, 190 KB)
Sensors as well as varios systems on their base are widly used and discover new and new areas for applciations on almost all aspects of human activity. Optical IR-sensors and detectors belong to a special niche since are allowed to control and manage the processes which take place at room and much low temperatures. Majority of the devices here are remote-acting and non-contact. Application of Wien's law to human body emission results in a peak wavelength of
For monitoring and temperature measurements of higher heated environments the wavelength range 3-5um is used. Practically all organic and inorganic compounds have the unique feature that they more or less good absorb at the diapason of 2‑15um. This cause the wide products line of IR-sensors and IR-detectors. Tydex introduces various passive optics for the discussed topic. Hereunder are some examples of the optical elements demonstrating the range of our products. Additional information is available in the following chapter - Frontal optics for ultimate applications.

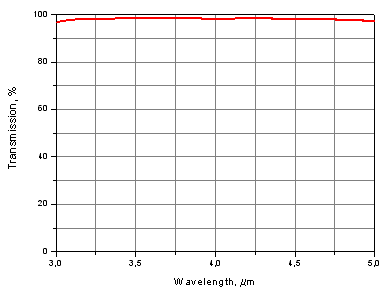

1) Silicon meniscus lenses for 3-5 um IR detectors (pyrometers) Application: production of concrete, steel, glasses, etc. Specification:

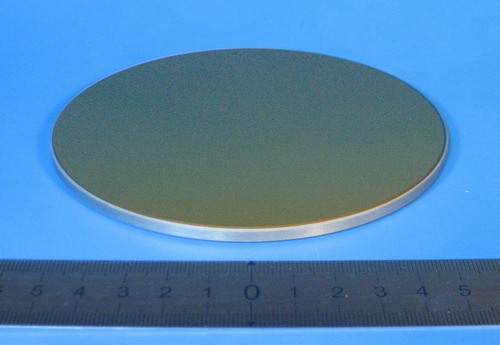

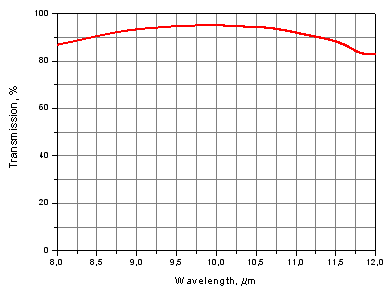

2) Germanium windows for 8-12 um IR imager Application: to be installed at helicopter for long-distanse monitoring of forest fire Specification:

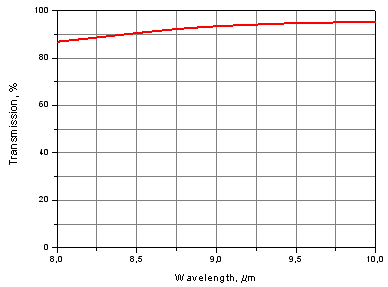

3) Germanium meniscus lenses for 8-10 um IR imager Application: sea-based system of 360 deg.-panoramic view Specification:
4) Protective domes for pyranometers Application: meteorology, climatology, environmental monitoring at green-houses and open fields Specification:

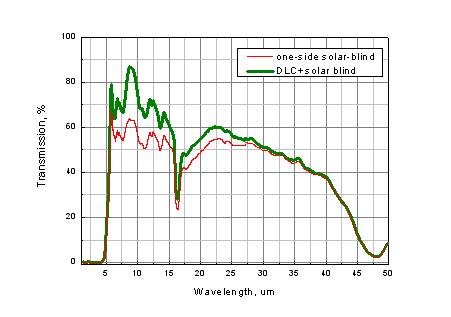

5) Filter for pyrgeometers Application: measuring an effective atmospheric IR radiation spectrum over wide spectral range (4.5-45 um) Specification:
6) Sapphire window for under-water sensors Application - to be installed at bathyscaphe to monitor continental shelf, ship's bottom, etc Specification:

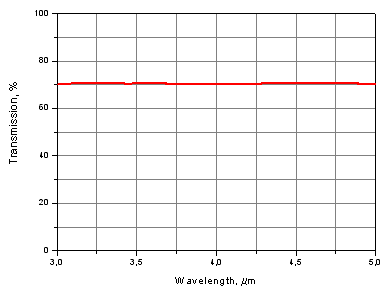

7) Si bullet-lens for 3-5 um IR immersion LED's and photodiodes Application: to be used as lighter emitter Specification:
8) CaF2 bullet-lens for 3-5 um IR immersion LED's and photodiodes Application: environmental monitoring Specification:

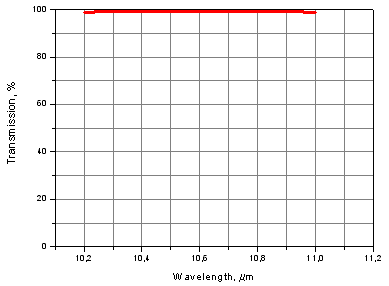

9) ZnSe lens for 10.6 um laser Application: laser industry, CO2- and CO-detectors, medicine Specification:

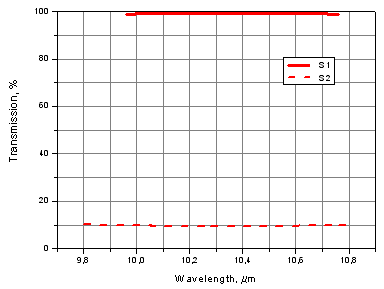

10) ZnSe beamsplitter Application: monitoring of air quality, nitrogen fixation, fruit storage, mycology, medicine Specification:

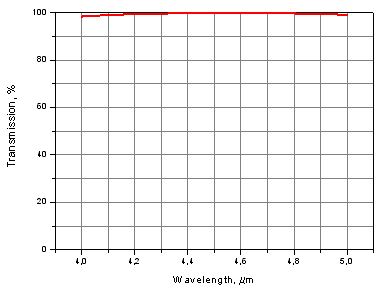

11) ZnSe window for IR detectors, etc. Application: monitoring of air quality, nitrogen fixation, fruit storage, mycology, medicine. Specification:
12) Teflon IR polarizer Application: methane leak detectors Specification:
We are pleased to emphasize that the list of similar components is permanently replenished and we are ready to considerate yuor new RFQ's.
